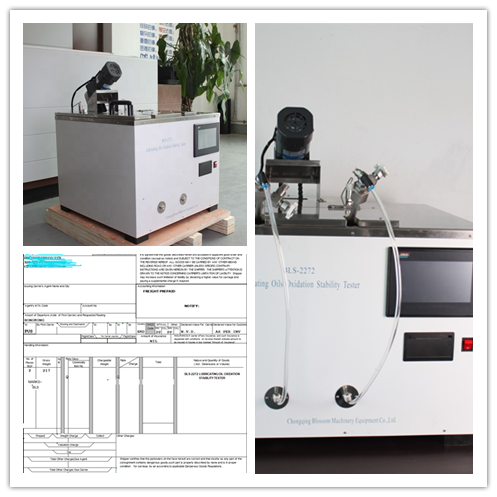

BLS-2272 Lubricating Oil Oxidation Stability Tester is designed and manufactured in strict accordance with Industrial Standard SH/T 0193 and ASTM standard ASTM D2272. It utilizes an oxygen-pressured vessel to evaluate the oxidation stability of new and in-service turbine oils having the same composition in the presence of water and a copper catalyst coil at 150℃
|
1. Power supply: AC220V，50Hz
2. Mixing motor power: 60W
3. Heating power: 2000W
4. Oxygen-pressured vessel: 2 sets
5. Rotating speed: 100±2rpm
6. Pressure sensor measurement range: 0~1.6MPa
7. Pressure sensor measurement accuracy: 0.1% F.S.
8. Constant temperature bath: Oil bath
9. Temperature control range: R.T. ~ 200.0℃
10. Temperature control accuracy: ±0.1℃
11. Automatic test results detection & printing
12. Ambient temperature: 5~40℃
13. Relative humidity: <85%
14. Dimension: 540*660*620mm(final size can be changed within 10% versus specification) |
