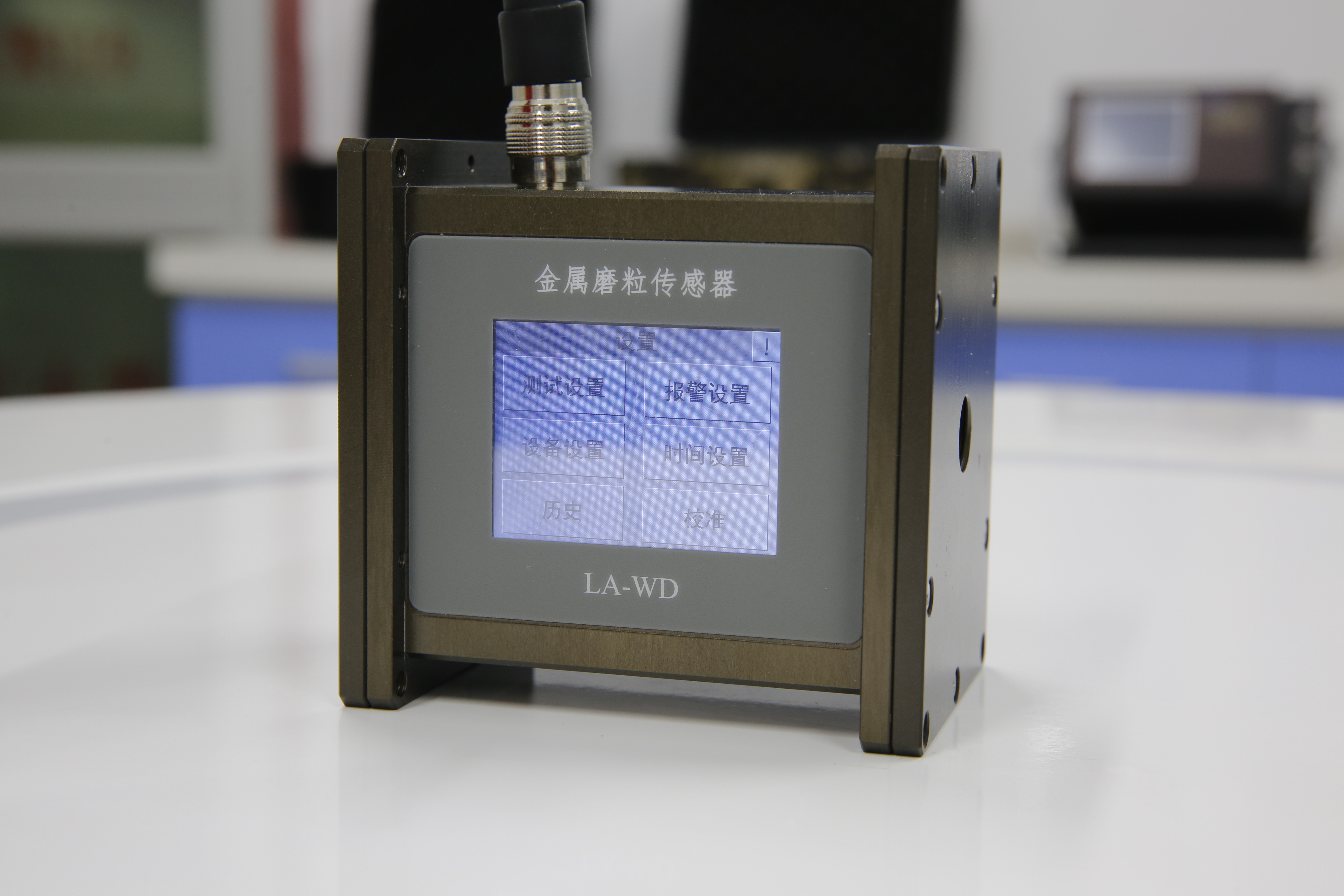

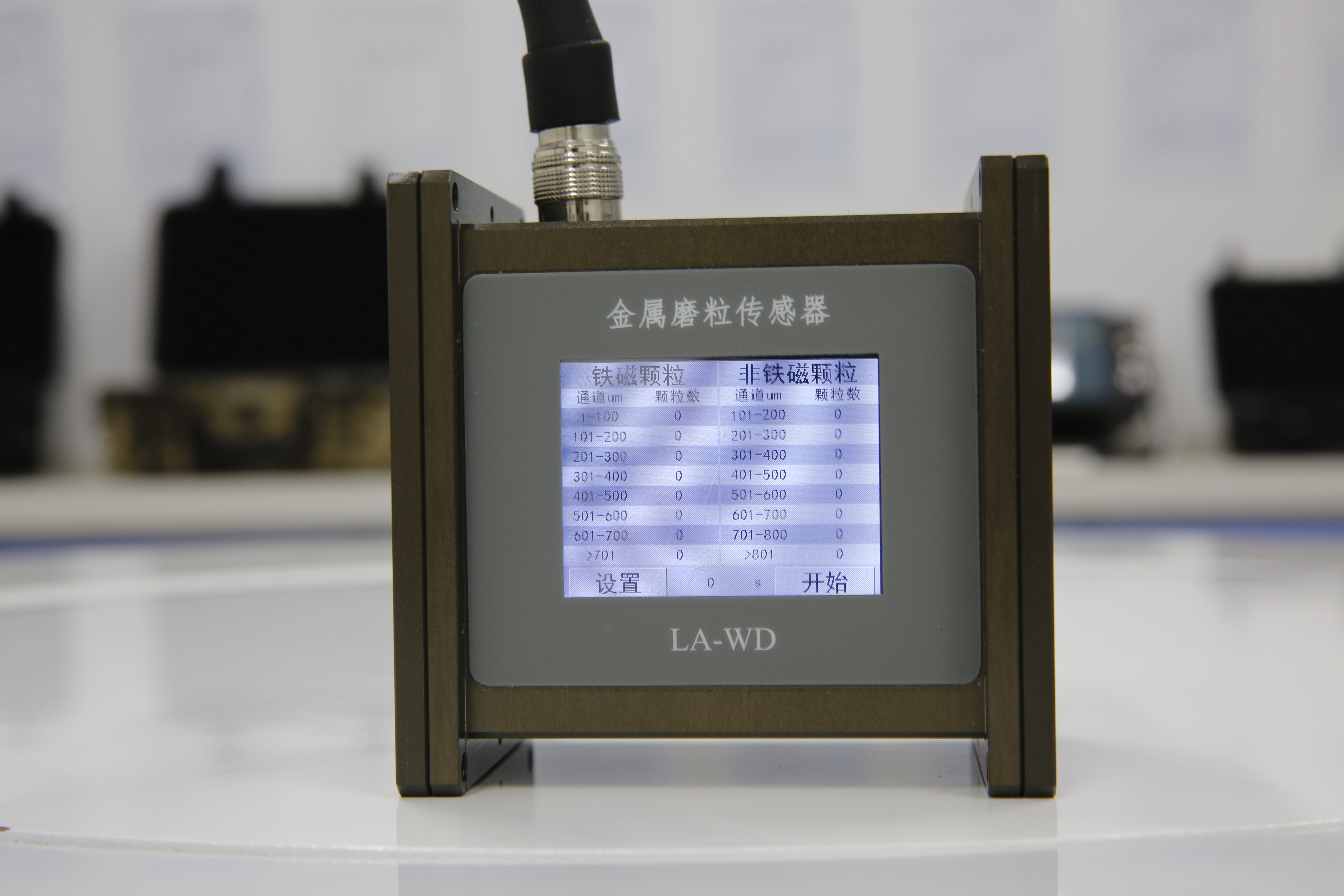

LA-WD Ferrous Wear Debris Monitor in In-Service Fluids Using a Particle Quantifier Instrument

Meets ASTM D8184

Main Features

1.40μm ferromagnetic & 150μm non-ferromagnetic wear particle detection capability

2. System flow rate estimation and data output

3. Abnormal wear detection to protect valuable assets

4. Measurement is not interfered by external metal and magnetic fields

5. Measurement is not affected by bubbles and moisture in the oil

6. Quick response, adjustable data accumulation period

7. Excellent chemical resistance and pressure resistance

8. No moving parts and consumable parts, ten years design life

9. Support U disk storage, optional thermal printer

Technical Specifications

1. Detection capability: ferromagnetic abrasive particles Fe>40um can customize the channel particle size

Non-ferromagnetic abrasive grain NFe>150um can customize the channel particle size

2. Statistical period: counting interval can be adjusted arbitrarily

3.Number of particles: Max5000 particles/second

4.Flow range: 0.1-40 L/min

5. Pipe diameter: 8mm

6. Output mode: touch screen, RS485 MODBUS, USB storage, printer, I/O alarm

7. Working power supply: DC9-36V 5W

8. Pressure resistance: 100bar Max

9. Applicable fluids: lubricating oil and hydraulic oil, etc.

10. Fluid temperature: -20~85°C

11. Shell material: hard aluminum oxide

12. Structure size: 100×73×96mm (length×width×height)

13. Thread interface: M14*1.5

14.Quantity:<1.0 kg

15. Protection level: IP67

16.Connecting cable: 10 cores
